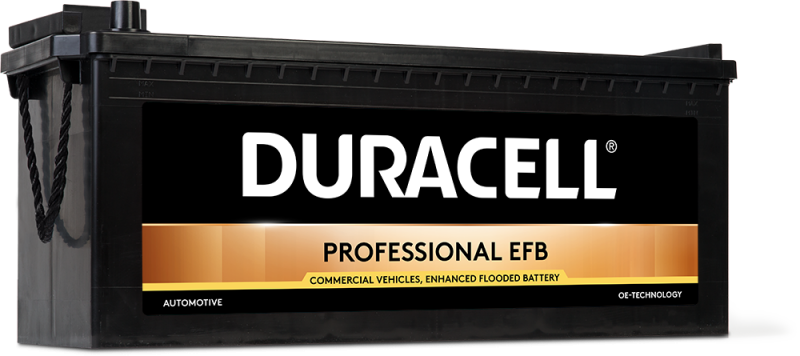

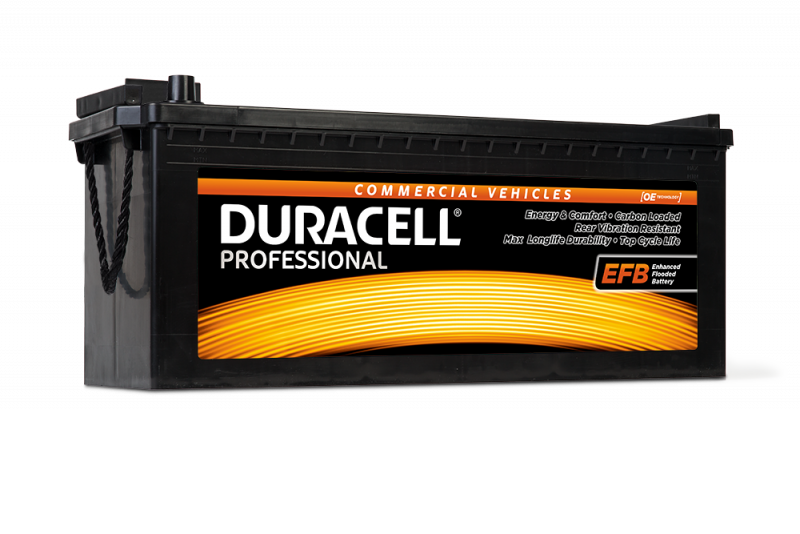

Duracell Professional EFB

DP 190 EFB

Nutzfahrzeugbatterie, LKW Batterie, Duracell Professional DP 190 EFB
Fits the following applications

DURACELL PROFESSIONAL EFB
INSTALLING THE POWER INTO LONG-DISTANCE TRUCKS



The batteries employed for the electrical systems in commercial vehicles have to provide top performance on a daily basis and in addition, the steady increase in the number of comfort functions demands large quantities of energy. In particular, this applies when long-distance truck drivers remain in their vehicles overnight and use a very large number of power consumers. Moreover, if the battery is to be integrated into the rear section of the truck frame, it must be extremely robust and vibration-resistant.



Please note when exchanging the battery:

A vehicle fitted with an EFB battery may never be retrofitted with a conventional wet battery. Should battery replacement become necessary, always use an EFB battery with an identical
box and performance class.

Duracell tip: A conventional starter battery can be upgraded into a more powerful and cycle-resistant Professional EFB.



FACTS PROFESSIONAL EFB



  • Choice of 2 standard battery sizes (B and C boxes) with 190 and 240 Ah respectively
  • Increased cyclical resistance owing to an active mass recipe and non-woven, electrode sleeves
  • Robust design and optimum vibration resistance due to special set anchorage
  • Improved mesh corrosion resistance derived from the use of a continuous production process
  • Calcium technology for minimum water consumption
  • Designed for the maximum energy requirements derived from the growing number of comfort functions in long-distance trucks
  • Maintenance-free (no topping-up with water) under normal operating conditions
  • Central degassing with integrated backfire protection
  • Dimensions in line with EN 50342-4:2009

Technical details

Product variations
Commercial Vehicle Batteries
Type
DP 190 EFB
Type UK
629 EFB OE
Type SAB
696EFB
Rated voltage (V)
12
Capacity (Ah)
190
Cold discharge test current EN (A)
1050
Layout
3
Terminal
1
Max. length (mm)
514
Max. width (mm)
223
Max. box height (mm)
195
Max. total height (mm)
220
Miscellaneous
mGGARZS
Base hold-down
B00

Downloads

Catalogue
Type List Starter Batteries
Technical Guide
Instructions for the use of starter batteries
Technisches Datenblatt
